登录后方可查看联系方式| 包装速度 | 30-60 |
|---|---|
| 电压 | 220V |
| 功率 | 1.5KW |
| 功能 | 包装辅助,包装容器成型,充填,封口,灌装,计量 |
| 适用对象 | 谷物 |
| 售后服务 | 保修一年 |
| 外形尺寸 | 4600*1960*1330mm |
| 重量 | 520kg |
| 营销 | 新品 |
| 适用行业 | 餐饮,化工,日化,食品 |
| 物料类型 | 颗粒 |
| 自动化程度 | 全自动 |
| 包装类型 | 袋 |
| 品牌 | 钦典 |
| 型号 | QD-18-II |
| 加工定制 | 是 |
| 包装材质 | 复合材料 |
钦典袋泡茶包装机、茶叶包装机、茶叶内外袋袋泡茶包装机
一、适 用 于：
茶叶、咖啡、中草药、植物等过滤性物品
二、特 点：
本机是一种新型热封式，多功能全自动袋泡茶饮品包装设备。该机的主要特点是内外袋一次成型，避免了人手与物料的直接接触，提高效率。内袋为过滤棉纸，可自动带线带标签，外袋为复合纸。其**大的好处在于：贴标和外袋均可采用光电定位，包装容量、内袋、外袋、标签等均可任意调整，可根据用户的不同需要来调整内外袋尺寸，以便达到包装效果，提高产品外观档次，使产品价值提升。
三、包装材料：过滤绵纸、棉线、标签纸、铝箔纸
四、技术参数：
包装容量：3-15ml
包装速度:30-50袋/分钟
标签尺寸: 宽：35-55mm 长：20-40mm
线 长: 155mm
内 袋:宽：50-80mm 长：50-80mm
外 袋:宽：70-100mm 长：80-140mm
电 源: 220V 60Hz110V 50HZ 3.5KW
外型尺寸:(L×W×H)900×610×1500mm
整机重量: 500Kg
QD-18-I I Teabag Inner and outer bag Packing Machine
Functional Features :
The machine is a latest heat sealing packing machine which has automatic multi-functions. The main feature of this machine is one-time packing for the inner and outer bag, avoiding hands directly contacting with stuff and improving the efficiency. The inner bag is made of filterable cotton paper which can be automatically packed with toting thread and label. The outer bag is composite paper. The advantage is photoelectric location for the tag and outer bag, adjustment to the need of the content, length of inner bag and outer bag. The dimension of inner and outer bag can be adjusted according to the different requirements from customer to achieve the perfect shape, upgrade the appearance of product and add the value of product.
Application:
Be suitable for the dual bag packing of small grain-like materials, such as tea leaf, coffee, Chinese traditional medicine and healthy tea etc.
Pack materials:
paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea paper,thred,tag
Specification：
| Packing Capacity | 3-15ml |
| Packing Speed | 35-60 bags/min |
| Tag Dimension | (L)：20-24mm; (W)：40-55mm |
| Length of Thread | 155mm |
| Dimension for Inner Bag | (L)：50-100mm; (W)：50-80mm |
| Dimension for Outer Bag | (L)：80-130mm; (W)：70-110mm |
| Power | 200V /50Hz / 3.7KW |
| Outline Dimension | (L×W×H)1200×900×1900mm |
| Machine Weight | 500Kg |
包装机图

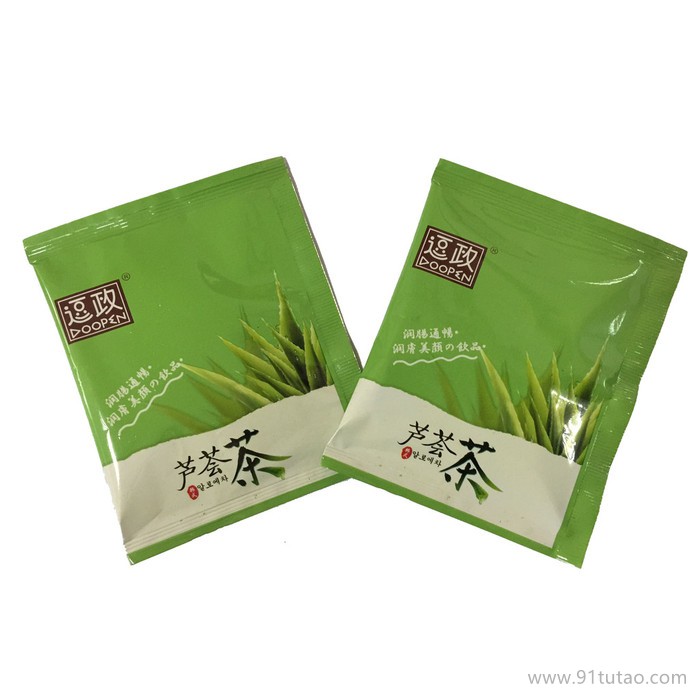

样品图
